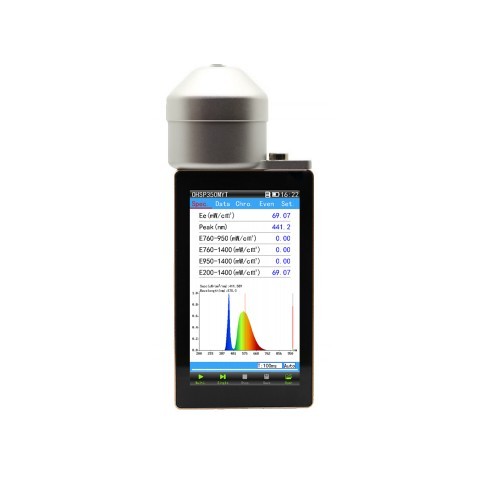

OHSP-350MYT medical light source spectrum analyzer is a professionalequipment for the measurement of medical lighting light source. lt adoptshigh-speed AMR processor and high-precision CCD optical sensor, and uses theprinciple of long-focus cross asymmetrical CT spectroscopic system to developand design. The touch display gives you the familiarityjust like operating a mobilephone. One-button operation to do measurements, and the data is displayed inreal time,which completely subverts the old-fashioned spectrum analyzer'sconcept of being huge, heavy, cumbersome to operate, and expensive. With PCsoftware,the test data can be analyzed and processed efficiently, with goodmeasurement linearity and accuracy. Mainly used in medical red and blue lighttherapy equipment Medical cold Light source lighting analysis, monitoring.research, etc.; it can also be used in home, shopping malls, schools, factories,outdoors and other on-site lighting measurement fields; it can also be used in theresearch and development of light source products, production line qualitymonitoring and other links.
Features:
Small size, light weight, easy to carry.
5.0"iPS high-definition LCD touch screen, easy to operate.
4000mAh high-capacity battery, can be used continuously for 20 hours on a single charge.Standard large-capacity data storage card, data storage capacity of more than 60,000.The telephoto crossed asymmetric CT spectroscopic system has good measurement linearity and measurement accuracy.Spectrum, illuminance, chromaticity, ficker and other measurement functions in one.Self-developed operating system, friendly interface, simple and smooth operation.Automatic temperature drift zero calibration technology, no need to calibrate the zero position before use, and no need to worryabout inaccurate test results caused by temperature drift during use.
Measuring:
1.Luminous flux(lm)、Light efficiency(lm/W)
2.CCT(K)、Duv
3.Coordinate(x,y)、(u,v)、(u'，v')
4.radiant fux(uW)
5.SDCM graph
6.Color Rendering Index Ra
7.S/P
8.dominant wavelength (nm)、peak wavelength(nm)、Center wavelength (nm)、 half width (nm)
9.color purity(%)、red ratio(%)、green ratio(%)、blue ratio(%)、CIE1931
10.Blue light hazard radiant flux(uW)、Blue light radiance ratio
11.φec1(uW/cm2)、φec2(uW/cm2) φg515-545(uW)、φr630-660(uW)
12.φb435-465(uW)、
13.φe760-1700(uW)、φe760-950(uW)、φe950-1700(uW)
14.φeuv(uW)、φefr(uW)、φerc(uW)、φebi(uW)
15.Infrared cutoff(mW/lm)、Integration time(ms)、peak signal17.TM-30Rf、TM-30Rg、TM-30
