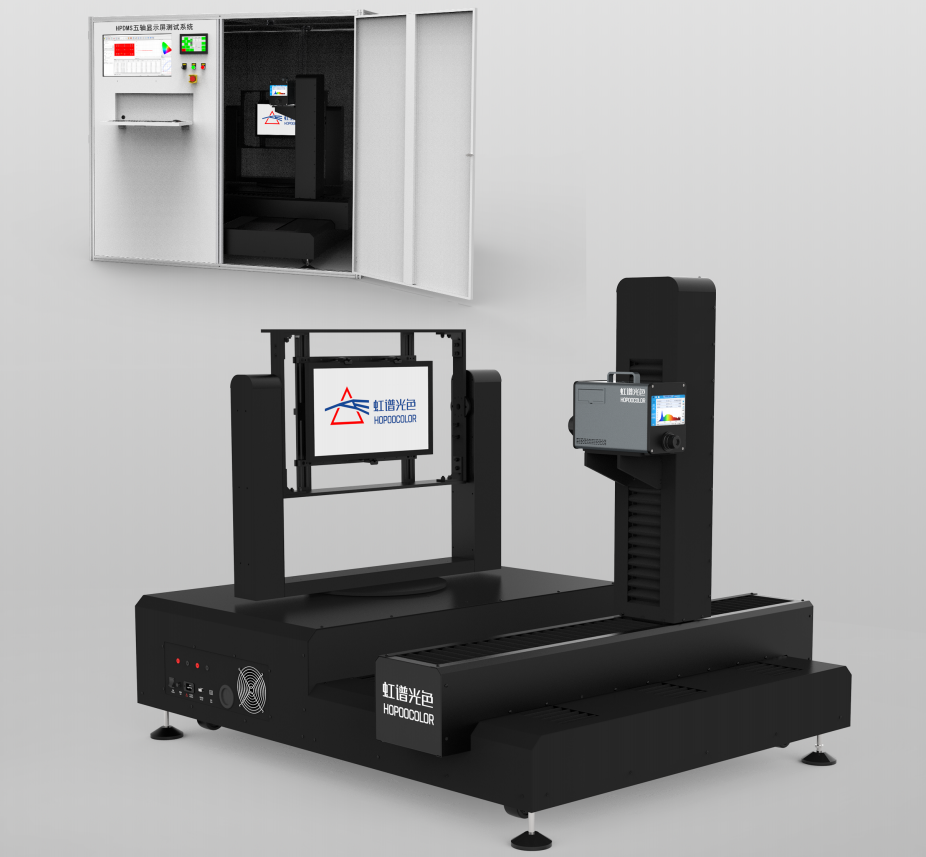

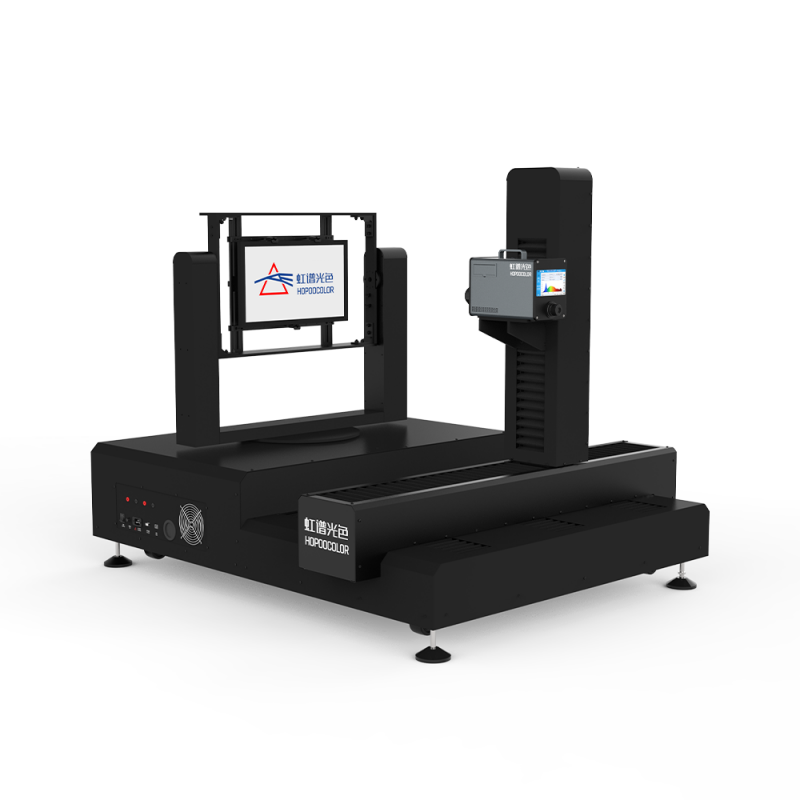

The five-axis display test system is an automated testing device that integrates multi-axis motion control and optical inspection technologies. lt is primarily used for multi-dimensional inspection of display screens (suchas LCDs, OLEDs, and Micro LEDs), including optical performance, display quality, and touch functionality. its core components include a five-axis motion platform (including X/Y/Z translation and A/B rotation axes, enabling +360° rotation and micron-level positioning accuracy), an optical inspection module (including a high-resolution cooledimaging colorimeter to collect parameters such as brightness, contrast, color gamut, and defective pixels), and a control and data processing unit (including a motion controller, test software, and AI algorithms to automate testexecution and generate analysis reports).
The system supports testing complex form factors such as flexible and curved displays and is widely used inproduction line quality control for panel manufacturers and consumer electronics manufacturers. it can improvetesting efficiency by over 30%, achieving an inspection accuracy of 0.1 cd/m2.
