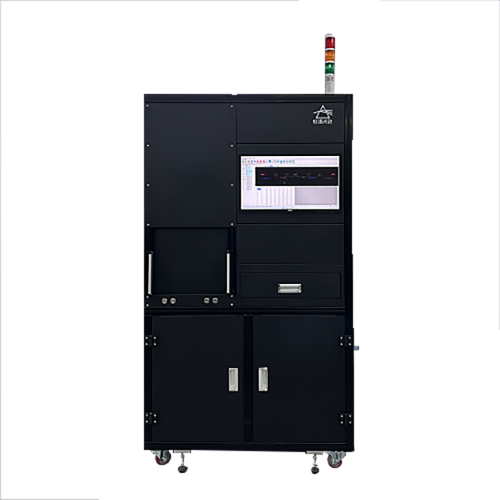

CXCSG-02 IMAGING COLORIMETER(PRODUCTION LINE）

CXCSG-02 IMAGING COLORIMETER(PRODUCTION LINE）
Whatsapp skype QQ
  • Product Details

Description and Application:

For the design of automotive lighting accessories module assembly and injection molded parts, the brightness L, color coordinates X, Y, color temperature, dominant wavelength and other parameters of each lighting component can be measured.

Pneumatically push out the fixture and open the door, with functions such as barcode scanning, OK dotting, NG box and light alarm.

This system is mainly used for production line inspection of automotive ambient lights, automotive front bumper injection molded backlights, automotive central control injection molded backlights, automotive ambient lights, automotive instrument panel backlights, display screens, keyboard backlights and other products.

Function

Size:0.62*1.0*1.8M

Barcode scanning: barcodes can be set to determine barcode errors and duplicate codes.OK marking: optional marking if the test is passed

NG box: Optional NG box function to ensure that defective products do not flow to the next work stationOK/NG switch signal is output to the lower station
